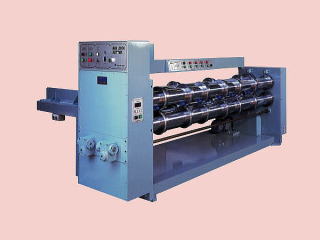

Air Lock Slitter is designed by TAKAO SEISAKUSHO.
It's a suitable slitter for a small mount sheets.
No tool is need for set-up, so you can make quick set-up.
Shafts and knives are lock by air.
Shortens set-up time to half quarter by manual lock.
|
| Specification (mm) |
|
TAS-5 |
TAS-6 |
TAS-7 |
TAS-8 |
TAS-9 |
| Frame Width |
1700 |
2000 |
2300 |
2600 |
2900 |
| Max. Sheet Width |
1550 |
1850 |
2150 |
2450 |
2750 |
| Roll Diameter |
95φ |
105φ |
150φ |
150φ |
150φ |
| Knife Diameter |
163φ |
173φ |
238φ |
238φ |
238φ |
| Slit Knife |
6 sets |
5 sets |
5 sets |
5 sets |
5 sets |
| Creaser |
6 sets |
6 sets |
6 sets |
6 sets |
6 sets |
| Min. Slitter Distance |
48 |
50 |
70 |
70 |
70 |
| Min. Creaser Distance |
50(20)*1 |
50(20)*1 |
70(82)*2 |
70(82)*2 |
70(82)*2 |
| Shaft Distance |
200 |
200 |
270 |
270 |
270 |
|
*1：Creaser holders are faced and matched.
*2：Attaching FS Finger. |
